Low Voltage Cable
AV

Low Voltage Nonsheath Cable AV

Low Voltage Nonsheath Cables are used for power transmission.

Category: Low Voltage Cable

Code: AV

Information

Aluminum conductor PVC insulated- Nonsheath cable are used for power transmission and distribution, fixed writing.

Designation: AV for Aluminum conductor

Permitted long term working temperature is 70oC

Max permitted temperature in short-circuit condition is:

  • 140oC with Nominal area larger than 300mm2
  • 160oC with Nominal area up to and incd. 300mm2

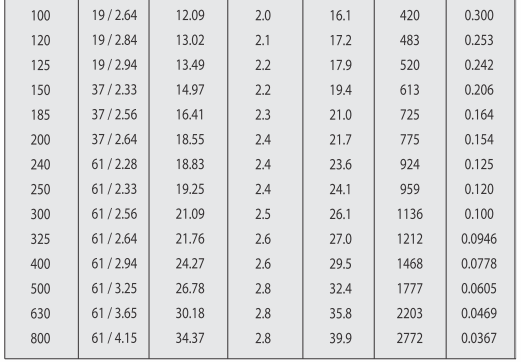

Technology

1. AV - 750V- NC Conductor

2. AV -750V- CC Conductor

3. AV- 0.6/1 KV- NC conductor

4. AV-0.6/1 KV- CC Conductor







Other products

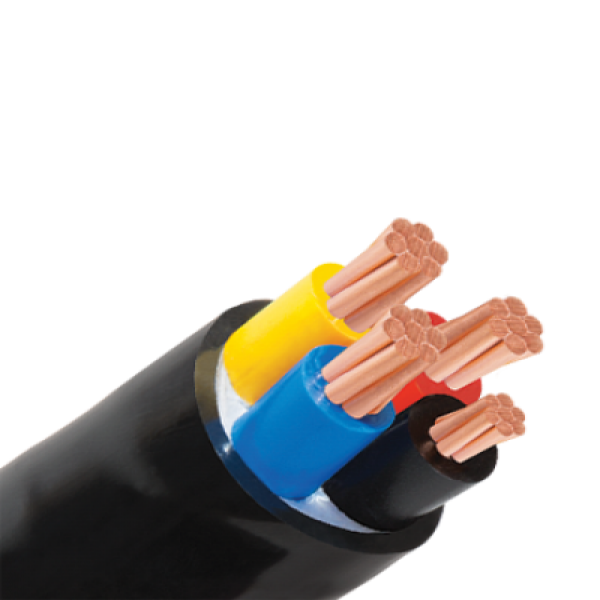

Low Voltage Nonsheath Cable CV
