Medium Voltage Cable
Medium Voltage Metallic Screened Cable, Voltage rated from 3.6/6 (7.2) kV to 18/30 (36) kV

Medium Voltage Metallic Screened Cable, Voltage rated from 3.6/6 (7.2) kV to 18/30 (36) kV

Medium voltage overhead and underground cable is applied for overhead line, power transmission line, distribution line, etc.

Category: Medium Voltage Cable

Code: Medium Voltage Metallic Screened Cable, Voltage rated from 3.6/6 (7.2) kV to 18/30 (36) kV

Information

I. MEDIUM VOLTAGE UNARMOURED CABLE

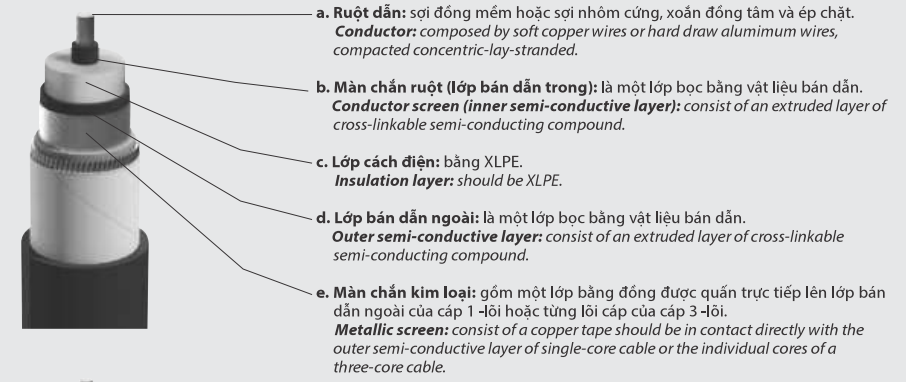

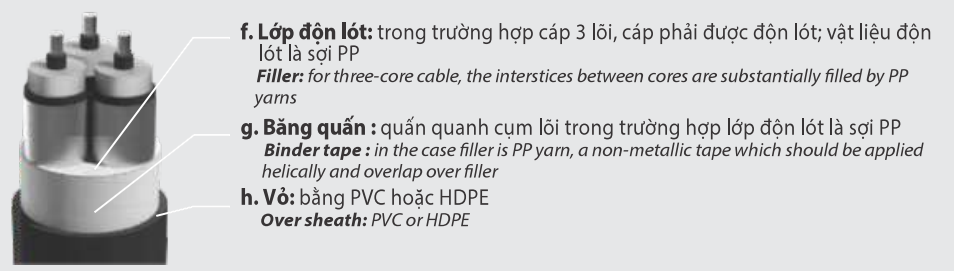

Cable Structure:

II. MEDIUM VOLTAGE DOUBLE METALLIC TAPES ARMOURED CABLE

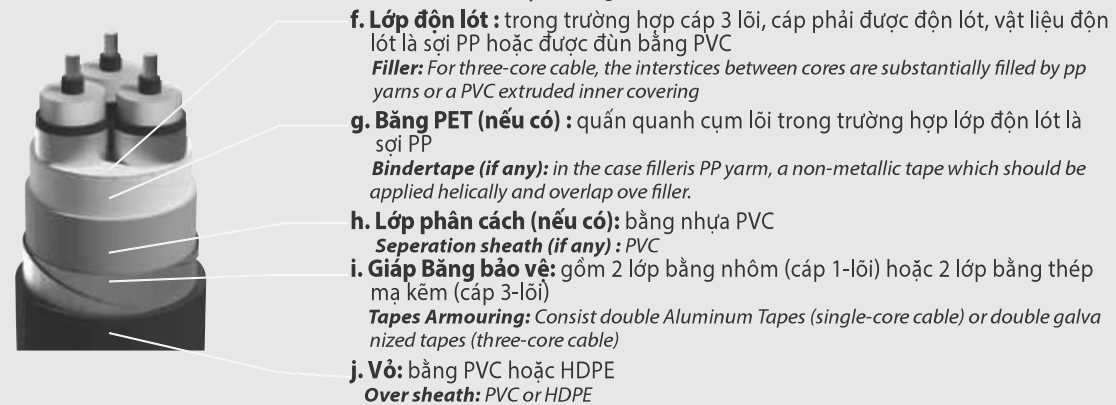

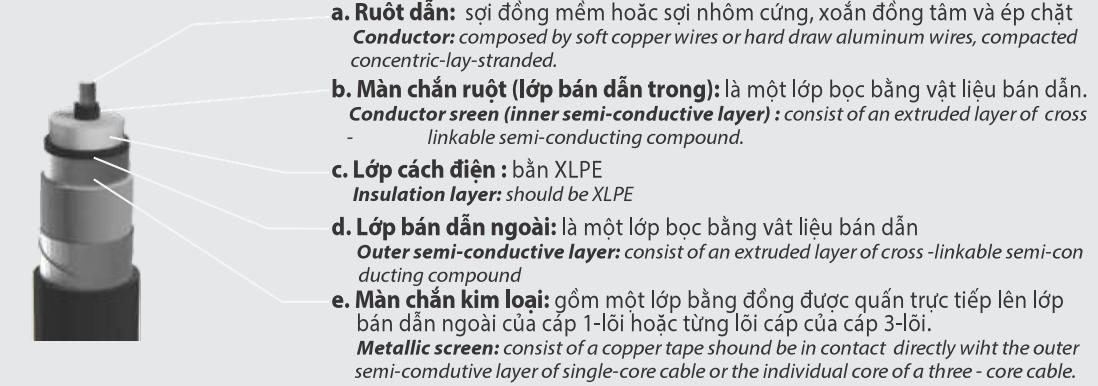

Cable Structure:

III. MEDIUM VOLTAGE METALLIC WIRES ARMOURED CABLE

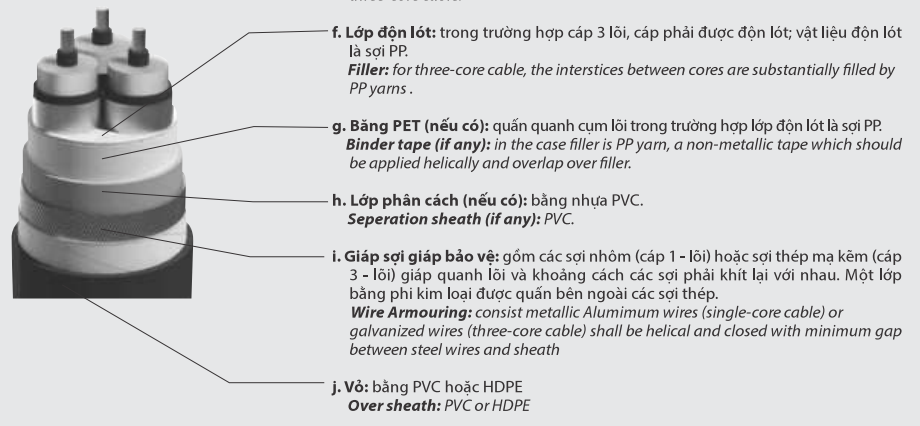

Cable Structure:

Technology

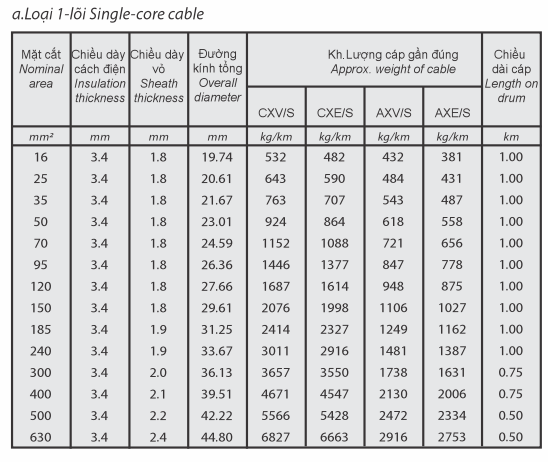

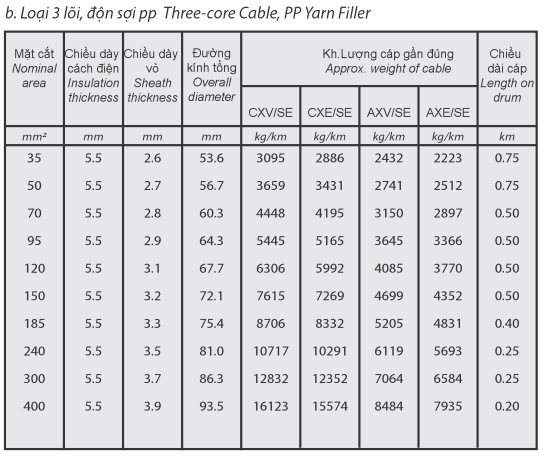

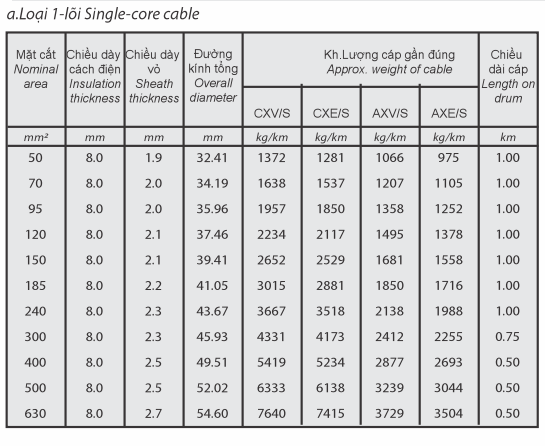

I. MEDIUM VOLTAGE UNARMOURED CABLE

1. Medium voltage unarmoured cable, voltage rated 3.6/6 (7.2) kV



2. Medium voltage unarmoured cable, voltage rated 6/10 (12) kV

3. Medium voltage unarmoured cable, voltage rated 8.7/15 (17.5) kV



4. Medium voltage unarmoured cable, voltage rated 12/20 (24) kV or 12.7/22 (24) kV

5. Medium voltage unarmoured cable, voltage rated 15/25 (30) kV



6. Medium voltage unarmoured cable, voltage rated 18/30 (36) kV

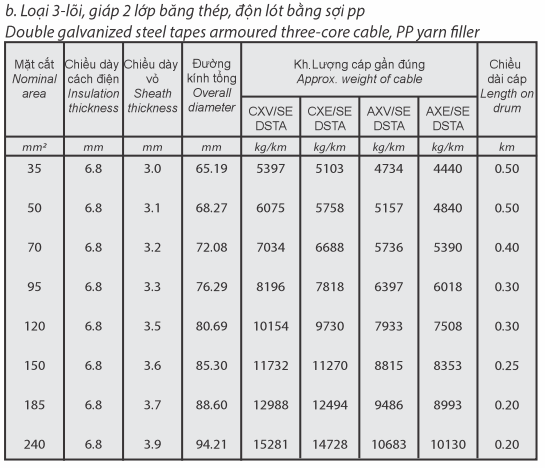

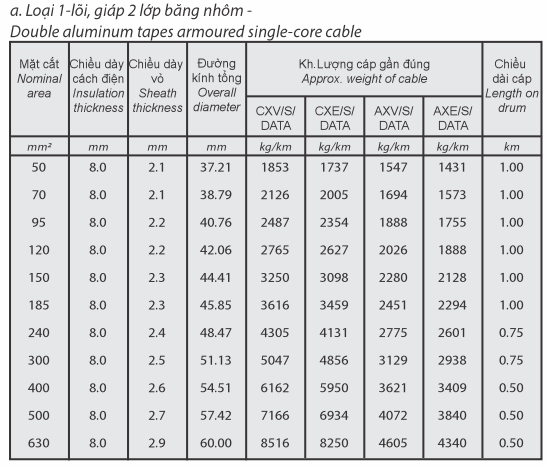

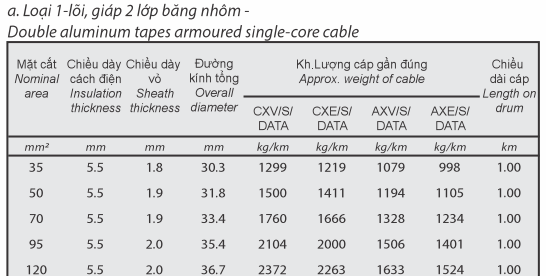

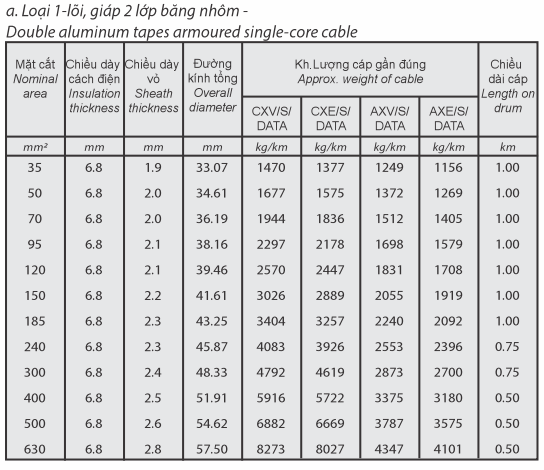

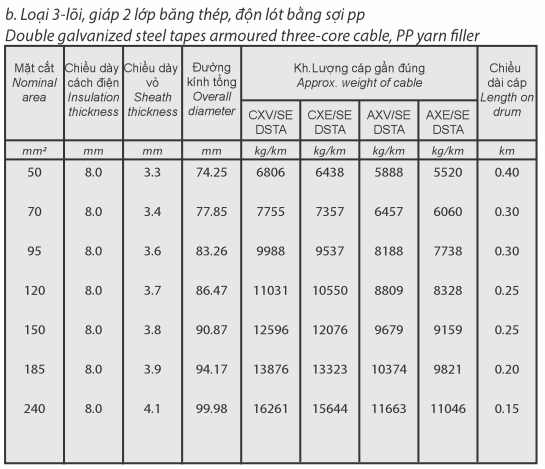

II. MEDIUM VOLTAGE DOUBLE METALLIC TAPES ARMOURED CABLE

1. Medium voltage tape armoured cable, voltage rated 3.6/6 (7.2) kV

2. Medium voltage tape armoured cable, voltage rated 6/10 (12) kV

3. Medium voltage tape armoured cable, voltage rated 8.7/15 (17.5) kV

4. Medium voltage tape armoured cable, voltage rated 12.7/22 (24) kV or 12/20 (24) kV

5. Medium voltage tape armoured cable, voltage rated 15/25 (30) kV

6. Medium voltage tape armoured cable, voltage rated 18/30 (36) kV

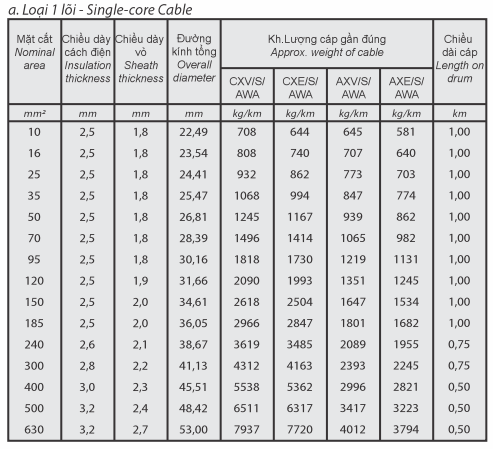

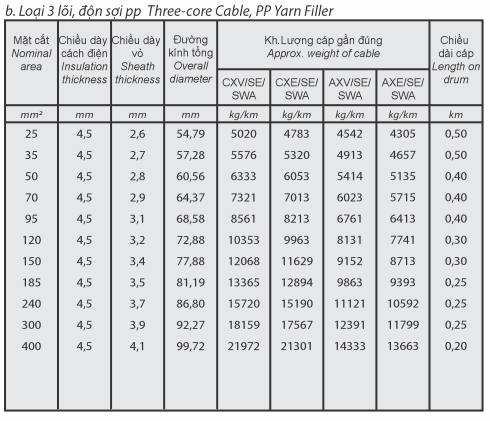

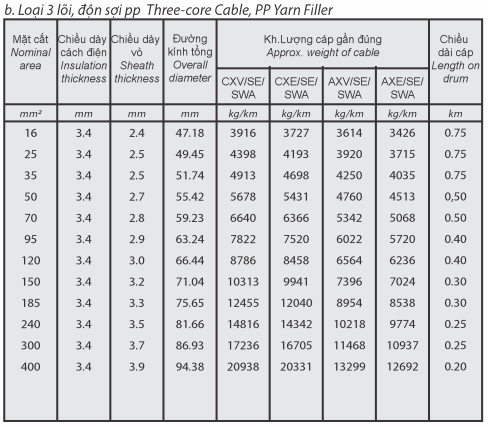

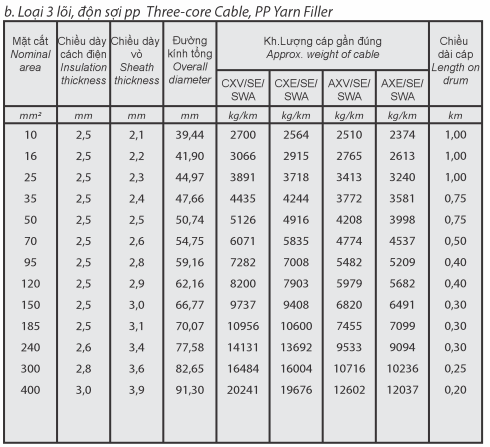

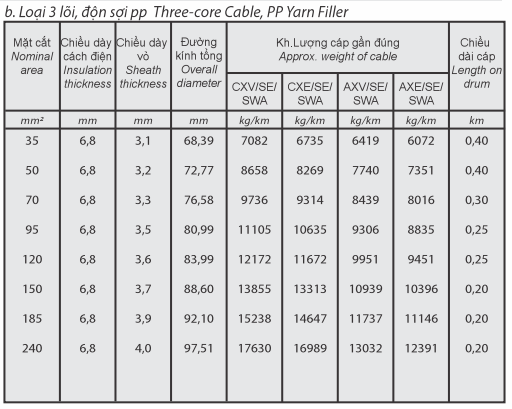

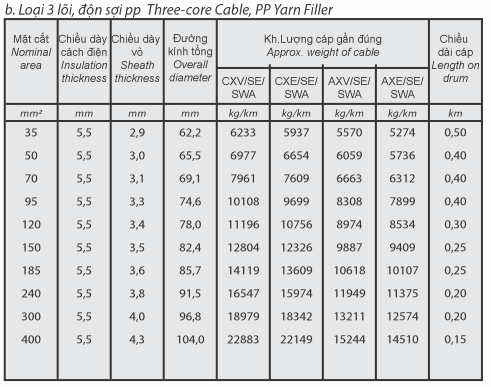

III. MEDIUM VOLTAGE METALLIC WIRES ARMOURED CABLE

1. Medium voltage wires armoured cable, voltage rated 3,6/6 (7,2) kV

2. Medium voltage wires armoured cable, voltage rated 6/10 (12) kV

3. Medium voltage wires armoured cable, voltage rated 8.7/15 (17.5) kV

4. Medium voltage wires armoured cable, voltage rated 12/20 (24) kV

5. Medium voltage wires armoured cable, voltage rated 15/25 (30)kV

6. Medium voltage wires armoured cable, voltage rated 18/30 (36) kV
